2010 Cadillac SRX

2010 Cadillac SRX - Design

General Motors has announced today the 2010 Cadillac SRX price for the United States market and the fact that it’s set to go into production this summer. The 2010 Cadillac SRX will be available with a 3.0L DOHC V6 direct injection engine developing 265 hp and 302 Nm of torque or a 2.8L DOHC turbocharged V6 with 300 hp and 400 Nm of torque. Both versions of the 2010 Cadillac SRX will be equipped with six-speed automatic overdrive transmission.

The design of the 2010 Cadillac SRX is inspired by the Provoq Concept that was premiered last year.

The 2010 Cadillac SRX price starts at 34,155 USD.

2010 Cadillac SRX - Front Side

PRELIMINARY SPECIFICATIONS

Models:

2010 Cadillac SRX

Body style / driveline:

five-door, 5-passenger front engine transaxle; front-wheel-drive/all-wheel-drive mid-luxury crossover vehicle

Construction:

steel body frame integral; galvanized steel front fenders, hood, roof, door panels, one-piece bodyside outer panel, and liftgate

EPA vehicle class:

sport utility vehicle

Manufacturing location:

Ramos Arizpe, Mexico

Key competitors:

Lexus RX; Acura MDX; BWW X3 and X5

Engines

3.0L DOHC V-6 direct injection, variable valve timing, four valves per cylinder

2.8L DOHC Turbo V-6, four valves per cylinder

Displacement (cu in / cc):

182 cu in / 2986 cc

170 cu in / 2792 cc

Bore x stroke (in / mm):

3.50 x 3.16 in / 89 x 80.3

3.50 x 2.94 in / 89 x 74.8

Block material: aluminum

Cylinder head material: aluminum

Valvetrain: DOHC, 4 valves per cylinder

Ignition system:

coil-near-plug

pencil Coil

Fuel Delivery:

high-pressure direct injection

PFI returnless

Compression ratio:

11.7:1

9.5:1

Horsepower (hp / kw @ rpm):

260 / 193 @ 6950 (est)

300 / 224 @ 5500 (est)

Torque (lb-ft / Nm @ rpm):

221 / 300 @ 5600 (est)

295 / 400 @ 1850 (est)

Recommended fuel:

regular unleaded; E85 capable

premium unleaded

Max engine speed (fuel cut-off):

7100

6500

Emissions Controls:

dual close-coupled catalysts and single underfloor catalyst; variable valve timing, evaporative system

dual close-coupled catalysts

Fuel economy (city / hwy)

TBD

TBD

2010 Cadillac SRX - Interior Design

Interior Dimensions

Seating Capacity (front / rear): 2 / 3

Headroom (in / mm):
front: 39.7 / 1009
rear: 38.4 / 976

Legroom (in / mm):
front: 41.2 / 1047
rear: 36.3 / 923

Shoulder room (in / mm):
front: 58.3 / 1481
rear: 56.2 / 1430

Hip room (in / mm):
front: 55.4 / 1408
rear: 54.7 / 1391

EPA passenger volume (cu ft / L) : 100.6 / 2848.6
EPA interior volume (cu ft / L): 129.8 / 3675.5
Cargo volume behind first-row seats (cu ft / L): 61.18 / 1732.4
Cargo volume behind second-row seats (cu ft / L): 29.20 / 826.8

Capacities

Trailer towing maximum (lb / kg):
3.0L: 2500 / 1136 (without towing package)
3.0L: 3500 / 1590 (with towing package)
2.8L: 3500 / 1590 (with towing package)

Maximum tongue weight (lb / kg): 350 / 158

Fuel tank (gal / L): 21 / 79.5

Cooling system (qt / L):
3.0L: 12.4 /11.7
2.8L: 12.6 /11.9

2010 Cadillac SRX - Left Side

Transmissions

6T70 Hydra-Matic six-speed transverse, electronically controlled, automatic overdrive transmission
AF40 Aisin Warner six-speed transverse, electronically controlled, automatic overdrive transmission

Chassis and Suspension

Front suspension:
independent, strut-type, specifically tuned coil springs, direct-acting stabilizer bar (hollow); hydraulic ride bushings

Rear suspension:
linked H-arm, hollow stabilizer bar; real-time damping available

Traction control:
all-speed using engine torque reduction and brake intervention

Steering type:
specifically calibrated hydraulic-power-assisted rack-and-pinion for V-6 models

Steering wheel turns, lock-to-lock
2.84
Turning circle, curb-to-curb (ft / M):
40.3 / 12.2

Steering ratio:
16.5:1

2010 Cadillac SRX - Prototype

Brakes

Four-wheel power-asssited disc with ABS (and ESC); vented front and rear rotors; aluminum calipers front and rear (two-piston front calipers, single-piston rear calipers)

Brake rotor diameter – front (in / mm):
13.6 / 345 x 1.2 / 30

Brake rotor diameter – rear (in / mm):
12.4 / 315 x 0.9 / 23

Total swept area (cu cc):
front: 179.4
rear: 72

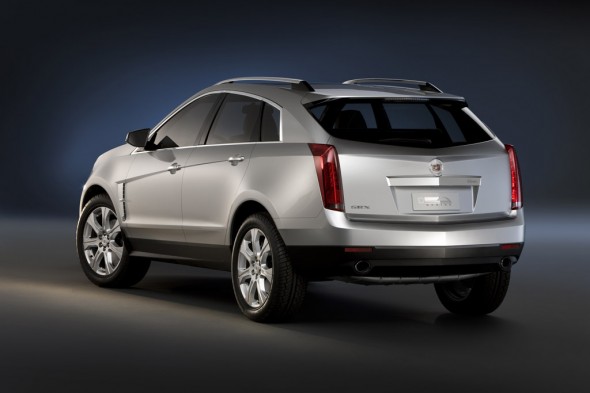

2010 Cadillac SRX - Rear Side

Wheels and Tires

Wheel size and type:
18-inch aluminum (std on all models)
20-inch aluminum (opt on all models)

Tires:
P235/65R18 AL3
P235/55R20 AL3 or 235/55R20 HW4

Exterior Dimensions

Overall length (in / mm): 190.2 / 4833
Overall width (in / mm): 75.1 / 1910
Overall height (in / mm): 65.6 / 1668
Wheelbase (in / mm): 110.5 / 2807
Front track (in / mm): 64.0 / 1626
Rear track (in / mm): 63.7 / 1620
